Mechanisms
ME
RMP2002CEN

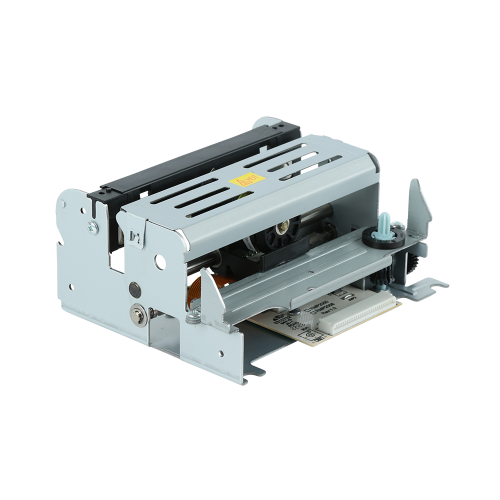

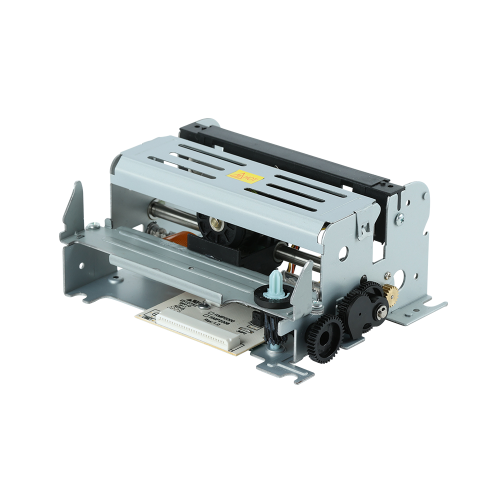

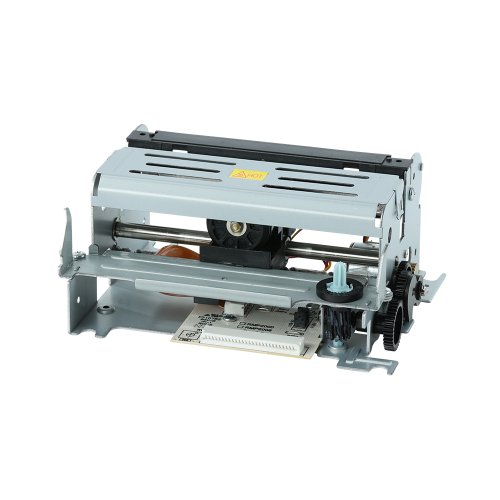

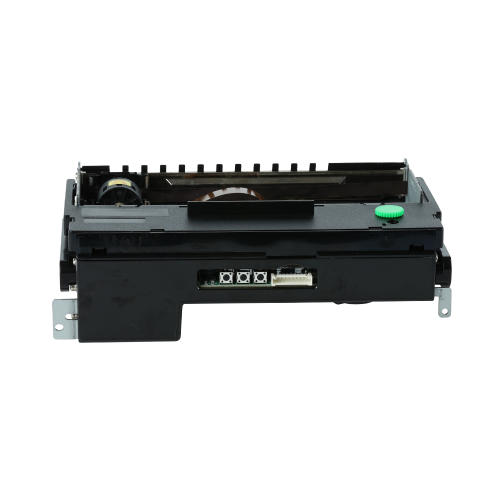

High-performance 9-pin serial impact dot mechanism
-
Technical Sheet
상품 정보 고시
Division Content Printing Method 9-Pin, Serial impact dot Printing speed 4.5 LPS (2.5 inch), 6.2 LPS (1.8inch) Printing width 63.5mm(2.5inch), 45.3mm (1.8inch) Paper width 76.2 ± 0.7mm, 57.5 ± 0.5mm Paper thickness 1 Sheet 0.06~0.085mm, Total 0.2mm Resolution Horizontal 84dpi(3.3 dot/mm) Resolution Vertical 144dpi(5.7dot/mm) Reliability Mechanism 10 Million Lines Reliability Dot Head 300 Million dots/wire Reliability Auto Cutting 1,000,000 cuts Dimension (W*D*H mm) Standard : 127.8 X 100.3 X 53.0, With cutter : 128.8 X 100.3 X 72.8 Option Black mark sensor and Auto cutter -
Accssories
-
24V Power adaptor(with an AC power cord) -
9pin female to female serial cable -
USB A-B Cable
-
