Panel Printers

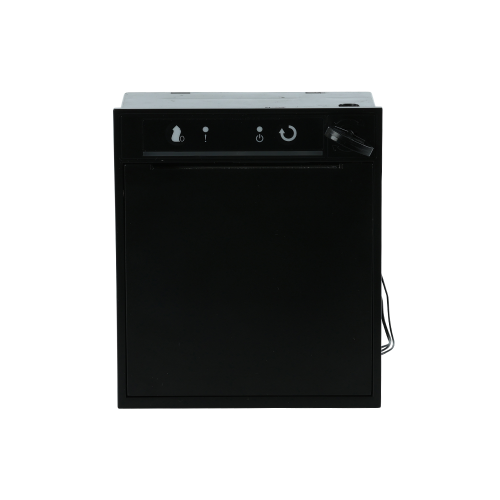

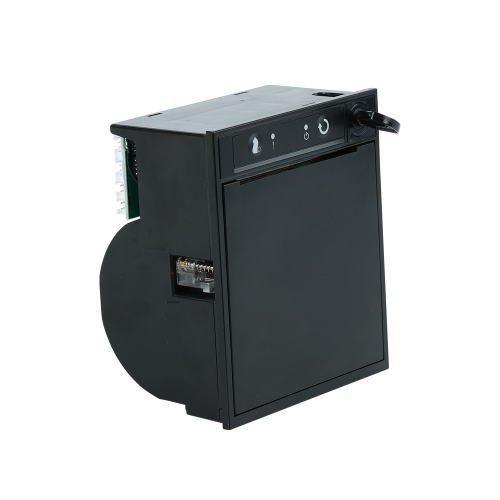

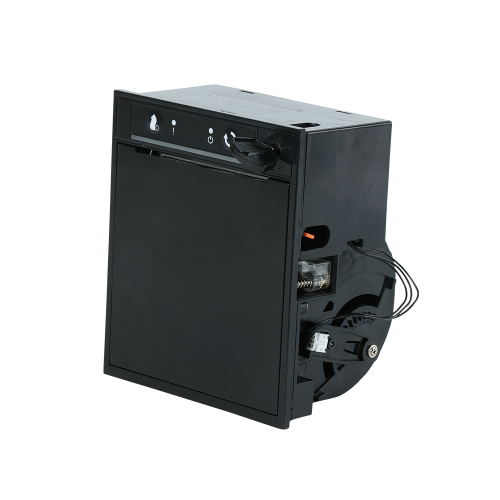

RXPA-802B

Panel printer capable of printing text, images, barcodes, receipts and tickets at 203 dpi resolution

Technical Sheet

Division	Content
Printing System	Direct Thermal auto load
Cutting System	Full cut or partial cut(through command)
Media	Thermal Rolls: Paper, Die cut continuous Label
Paper width	43~80 mm(adjustable)
Printing width	72 mm
Roll Diameter	80 mm
Roll Length	80 m
Paper thickness	0.053~0.09mm(receipt) / 0.01~0.15mm(label)
Dots/line	576
Characters/line	24, 48, 64
Resolution	203 dpi, 8 dots/mm
Printing speed	200 mm/sec
Dimensions (W x L x H mm)	114.8 x 132 x 86.4
Interfaces	Serial: USB & RS-232C & Parallel

Accssories
- 24V Power adaptor(with an AC power cord)
- 9pin female to female serial cable
- USB A-B Cable
옵션 장착 사진
Download
- Manual
  - 3-PA-1,2,3,4-MA_RXPA-802 User’s manual.pdf ()
- Spec Sheet
  - 3-PA-4-SP_RXPA-802BBSPECSHEET Ver1.0_250902.pdf ()
- SDK (Window)
  - 3-PA-1,2,3,4-DRWIN_RXPA-800series.zip ()
- SDK (Android)
  - REXOD_Android_SDK.zip ()
- Driver (Window)
  - 3-PA-1,2,3,4-DRWIN_RXPA-800series.zip ()
- Utility (Test program)
  - 3-PANEL PRINTERS-PA-1,2,3,4_UTILITY.zip ()
