Kiosk Printers

3inch

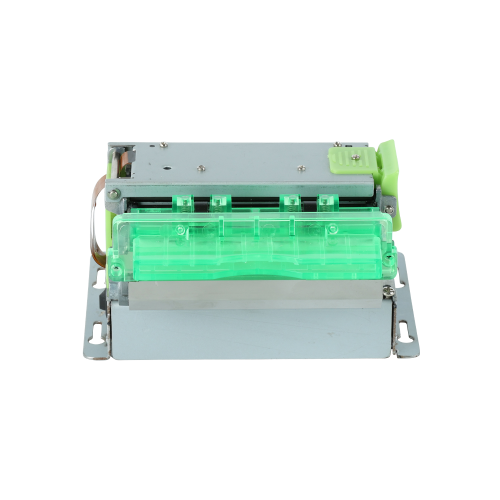

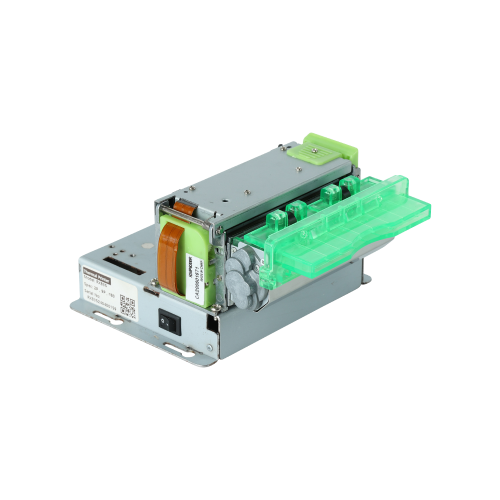

RX835-H00

Ultra-compact 3-inch printer mechanism for ticket and receipt printing

Technical Sheet

Division	Content
Printing System	Direct Thermal auto load
Cutting System	Auto cutter
Presenter	Available as an option
Bezel	Available as an option
Media	Thermal Rolls: Paper, Die cut continuous Label
Paper width	80 mm
Printing width	72 mm
Roll Diameter	120 mm
Roll Length	185 m
Paper thickness	0.05 to 0.12 mm
Dots/line	576
Characters/line	24, 48, 64
Resolution	203 dpi, 8 dots/mm
Printing speed	Up to 200 mm/sec
Dimensions (W x L x H mm)	130 x 170.4 x 107.9
Weight (without paper)	647g
Interfaces	Serial : USB & RS-232C
Sensors	Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home
Voltage	24VDC - 110/240VAC adapter available
Current	1.7A (mean) 17.6A (peak)
Print head life	150km
Cutter life	1 million cuts
Operating temperature	5~55°C

Accssories
- 24V Power adaptor(with an AC power cord)
- 9pin female to female serial cable
- USB A-B Cable
옵션 장착 사진
Download
- Spec Sheet
  - 1-3i-11-SP_RX835-H00 SPECSHEET Ver1.0_250902.pdf ()
- SDK (Window)
  - REXOD_LIB_V30015_Sample.zip ()
- SDK (Android)
  - REXOD_Android_SDK.zip ()
- Driver (Window)
  - DRIVER 윈도우.zip ()
- Utility (Test program)
  - RX2_Test_V02.zip ()
- Utility (Firmware update tool)
  - PrinterUpdateTool.zip ()
