Kiosk Printers

2inch

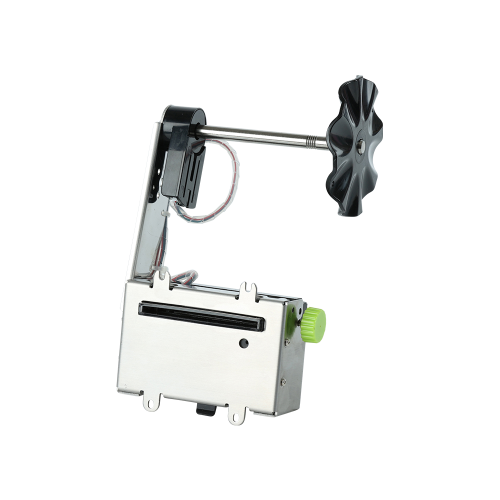

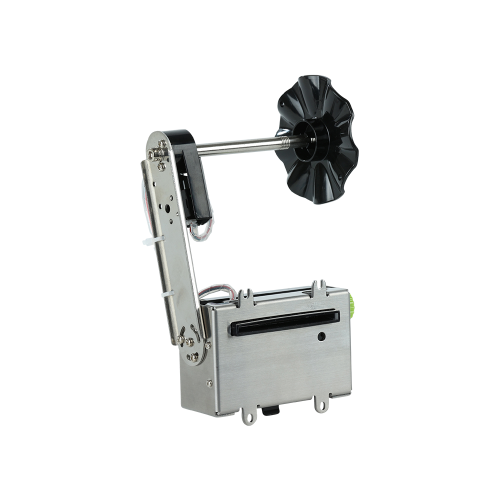

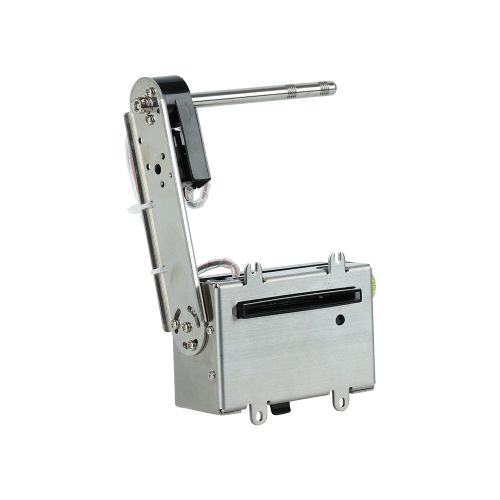

RX537-H80

2-inch single-arm kiosk printer for ticket and receipt printing

Technical Sheet

Division	Content
Printing System	Line thermal printing
Cutting System	Manual or Automatic cut
Presenter	Available as an option
Bezel	Available as an option
Media	Thermal receipt paper
Paper width	57.5± 0.5mm
Printing width	54 mm
Roll Diameter	80mm(max)
Roll Length	185 m
Paper thickness	0.056~0.1mm
Dots/line	432
Characters/line	18, 36, 48
Resolution	203 dpi, 8 dots/mm
Printing speed	85mm/s
Dimensions (W x L x H mm)	75x47x111
Weight (without paper)	970g
Interfaces	USB+RS232/TTL
Sensors	Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home
Voltage	24VDC - 110/240VAC adapter available
Current	1.7A (25% print ratio) ~ 8.5A (100% print ratio)
Print head life	50km
Cutter life	1 million cuts
Operating temperature	0℃~45℃

Accssories
- 24V Power adaptor(with an AC power cord)
- 9pin female to female serial cable
- USB A-B Cable
옵션 장착 사진
Download
- Spec Sheet
  - 1-2i-6-SP_RX537-H80 SPECSHEET Ver1.0_250902.pdf ()
- SDK (Window)
  - REXOD_LIB_V30015_Sample.zip ()
- SDK (Android)
  - REXOD_Android_SDK.zip ()
- Driver (Window)
  - DRIVER 윈도우.zip ()
- Utility (Test program)
  - RX2_Test_V02.zip ()
- Utility (Firmware update tool)
  - PrinterUpdateTool.zip ()
