Mechanisms
ME

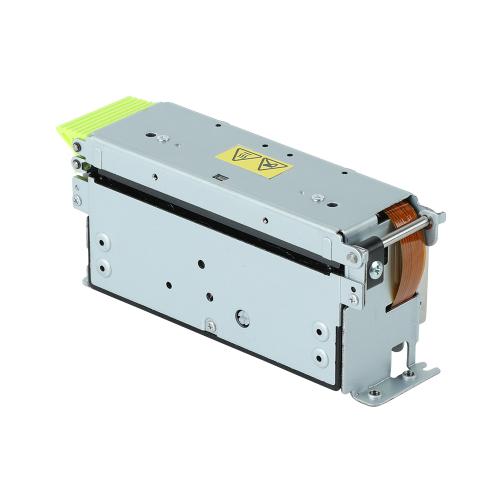

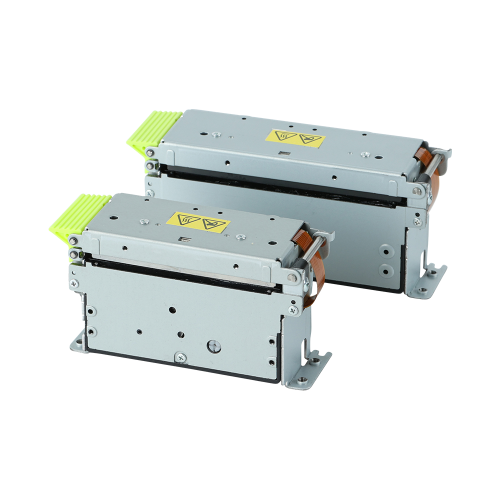

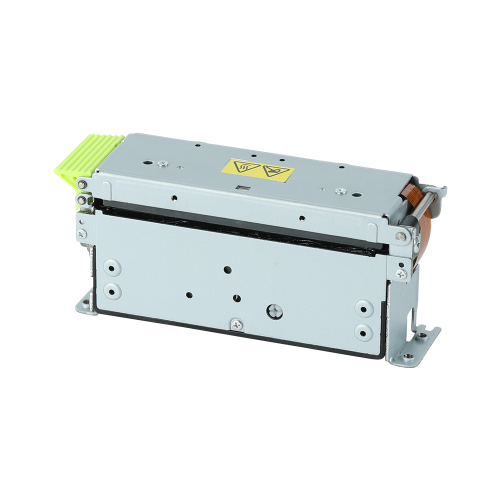

RMP8300
High-quality 3-inch mechanism
Net Weight: 270g (with paper mouth)
Power: External Power Supply Housed Internally (Adaptor 24V/2.5A)
Interface: USB(V2.0 Full Speed) + Serial(9P-Male, Connector type)
-
Technical Sheet
상품 정보 고시
구분 내용 Printing Method Direct line thermal Printing speed Max. 200mm/s Printing width 72mm (576dots) Paper width 80 ± 0.5 mm Paper thickness 0.05 ~ 0.12 mm Resolution 203dpi (8 dot/mm) Reliability TPH 150 km Reliability Auto Cutting 1 million cuts Dimension (W*D*H mm) 116.5 x 34 x 52 Cutter Full cut and Partial cut Paper Path Straight Character Size Font A: 12 x 24 / Font B: 9 x 17 / KOR,CHN,JPA: 24 x 24 -
Accssories
-
24V Power adaptor(with an AC power cord) -
9pin female to female serial cable -
USB A-B Cable
-
