Kiosk Printers

3inch

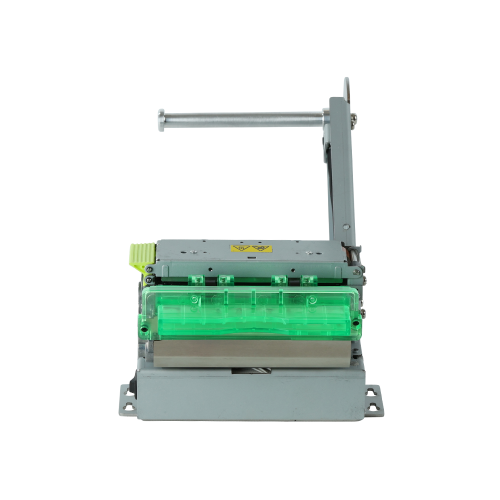

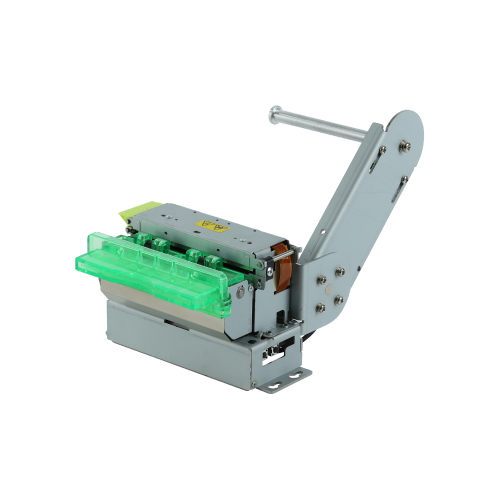

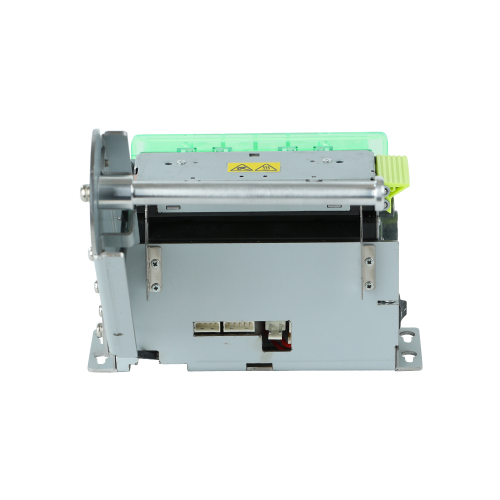

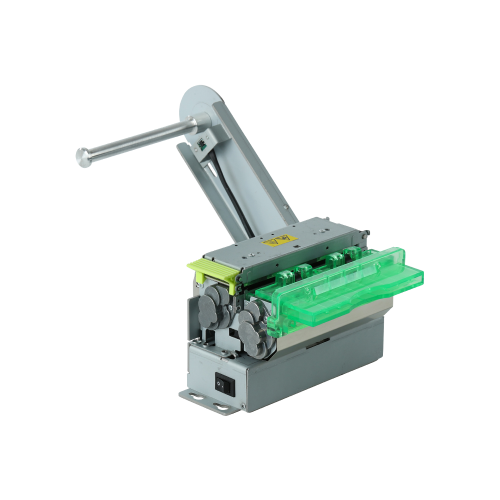

RX836-H120(SR)

3-inch single-arm kiosk printer for ticket and receipt printing

Technical Sheet

구분	내용
Printing System	Direct Thermal auto load
Cutting System	Command, Partial, Full
Presenter	Available as an option
Bezel	Available as an option
Media	Thermal receipt paper
Paper width	79mm (MAX)
Printing width	72mm
Roll Diameter	150mm(MAX) ** Additional Option : 200mm(MAX
Paper thickness	0.05 to 0.12 mm
Dots/line	576
Characters/line	24, 48, 64
Resolution	203 dpi, 8 dots/mm
Printing speed	Up to 200 mm/sec
Dimensions (W x L x H mm)	Standard: 199.2 x 131.6x 150.6 (L x W x H) / Presenter: 251 x 118 x 150.6 (L x W x H)
Weight (without paper)	647g
Interfaces	USB, RS232
Sensors	Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home
Voltage	24VDC - 110/240VAC adapter available
Current	1.7A (25% print ratio) ~ 8.5A (100% print ratio)
Print head life	150km
Cutter life	1 million cuts
Operating temperature	-5~50°C

Accssories
- 24V Power adaptor(with an AC power cord)
- 9pin female to female serial cable
- USB A-B Cable
옵션 장착 사진
Download
- Spec Sheet
  - 1-3i-12-SP_RX836-H120SR SPECSHEET Ver1.0_250902.pdf ()
- SDK (윈도우)
  - REXOD_LIB_V30015_Sample.zip ()
- SDK (안드로이드)
  - REXOD_Android_SDK.zip ()
- Driver (윈도우)
  - DRIVER 윈도우.zip ()
- Utility (Test program)
  - RX2_Test_V02.zip ()
- Utility (Firmware update tool)
  - PrinterUpdateTool.zip ()
