Kiosk Printers

3inch

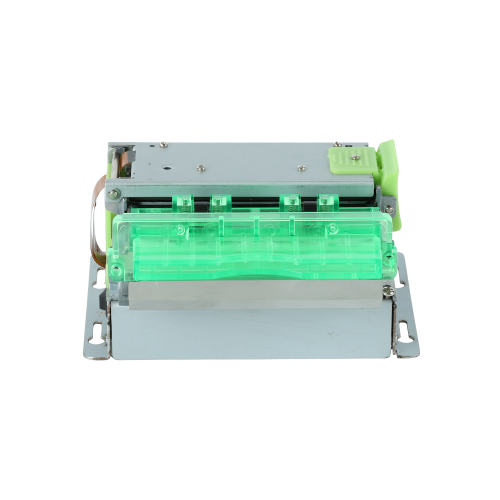

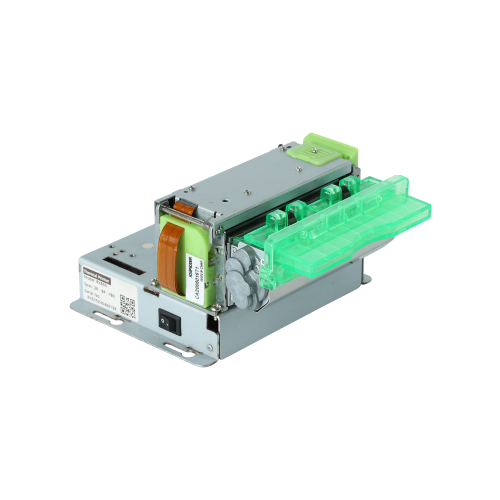

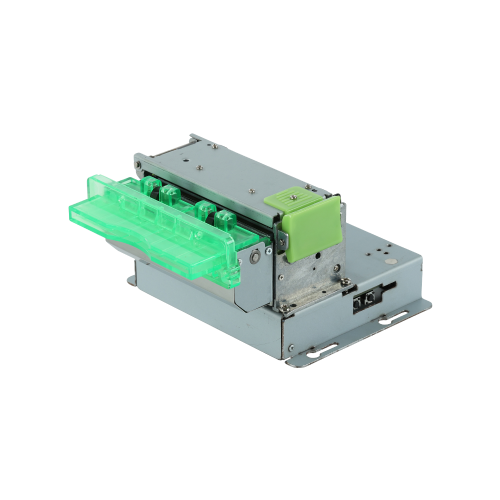

RX835-H00

Ultra-compact 3-inch printer mechanism for ticket and receipt printing

Technical Sheet

구분	내용
Printing System	Line thermal printing
Cutting System	Command, Partial, Full
Presenter	Available as an option
Bezel	Available as an option
Media	Thermal receipt paper
Paper width	82.5mm (MAX)
Printing width	80mm
Roll Diameter	** Additional Option : 80mm, 120mm
Paper thickness	0.06~0.15mm
Dots/line	640
Characters/line	24, 48, 64
Resolution	203 dpi, 8 dots/mm
Printing speed	Up to 250 mm/sec
Dimensions (W x L x H mm)	121.5 x 130 x 77.2
Weight (without paper)	690g
Interfaces	USB, RS232
Sensors	Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home
Voltage	24VDC - 110/240VAC adapter available
Current	1.7A (25% print ratio) 8.5A (100% print ratio)
Print head life	150km
Cutter life	1 million cuts
Operating temperature	-5~45°C

Accssories

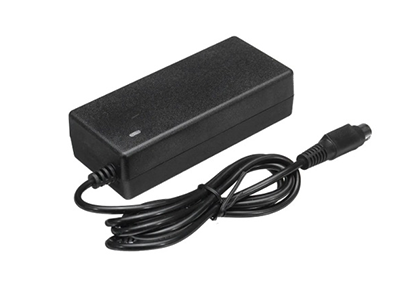

- 24V Power adaptor(with an AC power cord)

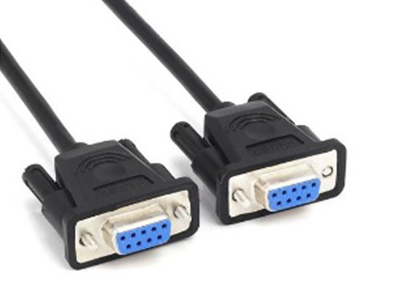

- 9pin female to female serial cable

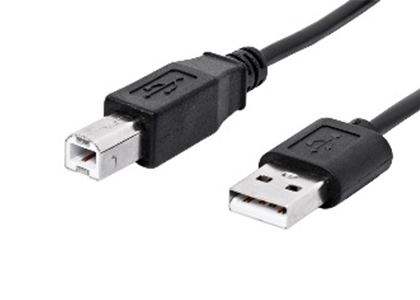

- USB A-B Cable
옵션 장착 사진
Download
- Spec Sheet
  - 1-3i-11-SP_RX835-H00 SPECSHEET Ver1.0_250902.pdf ()
- SDK (윈도우)
  - REXOD_LIB_V30015_Sample.zip ()
- SDK (안드로이드)
  - REXOD_Android_SDK.zip ()
- Driver (윈도우)
  - DRIVER 윈도우.zip ()
- Utility (Test program)
  - RX2_Test_V02.zip ()
- Utility (Firmware update tool)
  - PrinterUpdateTool.zip ()
