Kiosk Printers

3inch

RX831-V120PRM2

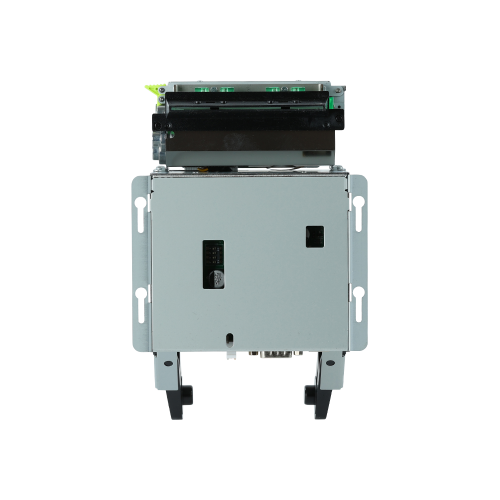

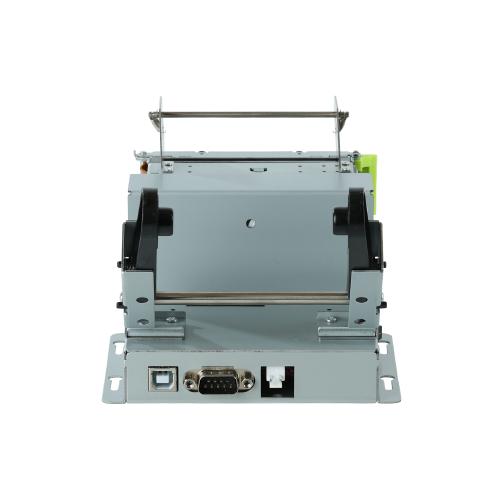

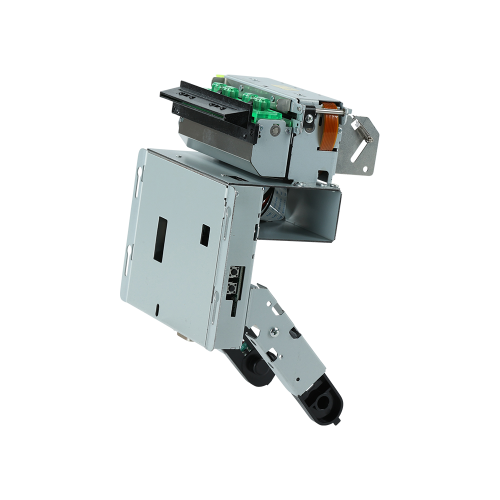

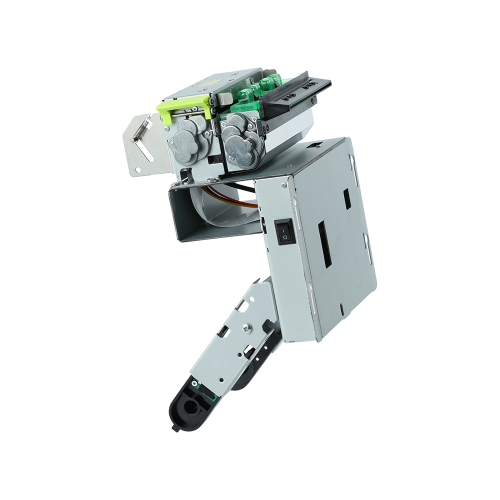

3-inch small-footprint Kiosk printer with a vertical design

Technical Sheet

구분	내용
Printing System	Line thermal printing
Cutting System	Partial / full (option)
Presenter	Available as an option
Bezel	Available as an option
Media	Thermal receipt paper
Paper width	79 ± 0.5 mm
Printing width	72mm
Roll Diameter	120mm Max
Paper thickness	0.056~0.08mm [max 0.1]
Dots/line	576
Characters/line	24, 48, 64
Resolution	203 dpi, 8 dots/mm
Printing speed	Up to 200 mm/sec
Dimensions (W x L x H mm)	130 x 115.9 x 200
Weight (without paper)	910g
Interfaces	USB+Serial
Sensors	Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home
Voltage	24VDC - 110/240VAC adapter available
Current	1.7A (25% print ratio) ~ 8.5A (100% print ratio)
Print head life	150km
Cutter life	1 million cuts
Operating temperature	0~50°C

Accssories
- 24V Power adaptor(with an AC power cord)
- 9pin female to female serial cable
- USB A-B Cable
옵션 장착 사진
Download
- Spec Sheet
  - 1-3i-10-SP_RX831-V120PRM2 SPECSHEET Ver1.0_250902.pdf ()
- SDK (윈도우)
  - REXOD_LIB_V30015_Sample.zip ()
- SDK (안드로이드)
  - REXOD_Android_SDK.zip ()
- Driver (윈도우)
  - DRIVER 윈도우.zip ()
- Utility (Test program)
  - RX2_Test_V02.zip ()
- Utility (Firmware update tool)
  - PrinterUpdateTool.zip ()
