Kiosk Printers

3inch

RX830-V80

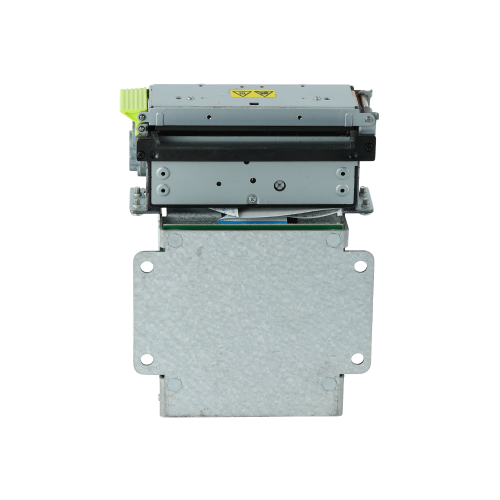

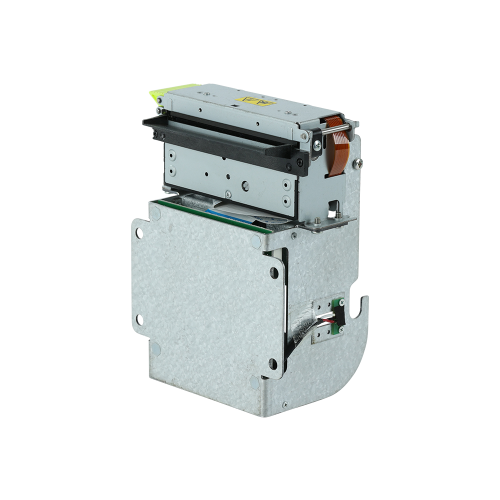

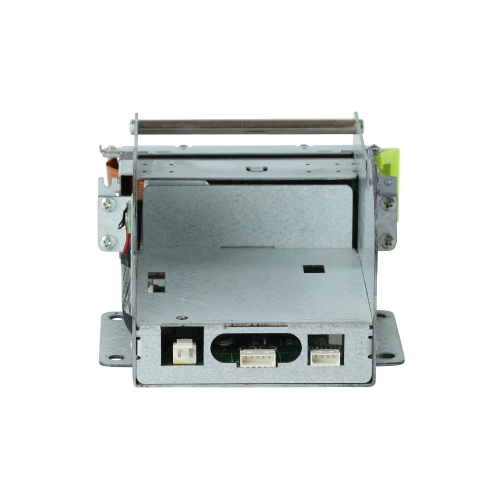

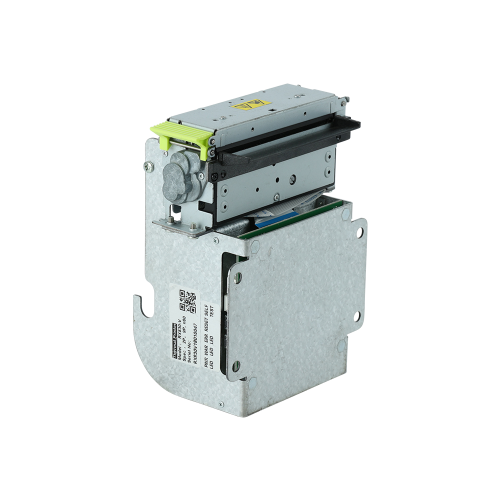

3-inch small-footprint Kiosk printer with a vertical design

Technical Sheet

구분	내용
Printing System	Line thermal printing
Cutting System	Partial / full (option)
Presenter	Available as an option
Bezel	Available as an option
Media	Thermal receipt paper
Paper width	60 mm
Printing width	54 mm
Roll Diameter	80mm Max
Paper thickness	0.056~0.08mm [max 0.1]
Dots/line	567
Characters/line	18, 36, 48
Resolution	203 dpi, 8 dots/mm
Printing speed	Up to 200 mm/sec
Dimensions (W x L x H mm)	108.6 x 170.4 x 107.9
Weight (without paper)	600g
Interfaces	USB+Serial
Sensors	Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home
Voltage	24VDC - 110/240VAC adapter available
Current	1.7A (25% print ratio) ~ 8.5A (100% print ratio)
Print head life	150km
Cutter life	1 million cuts
Operating temperature	0~50°C
