Kiosk Printers
2inch

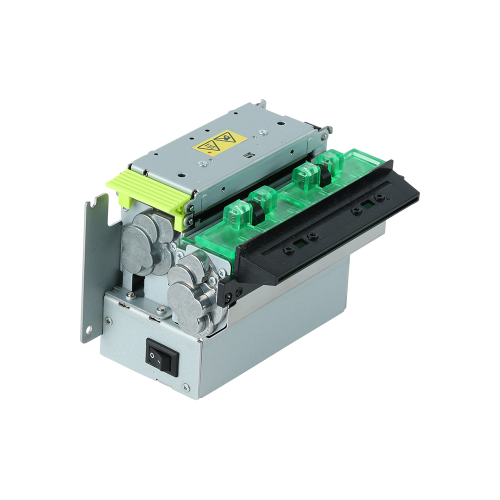

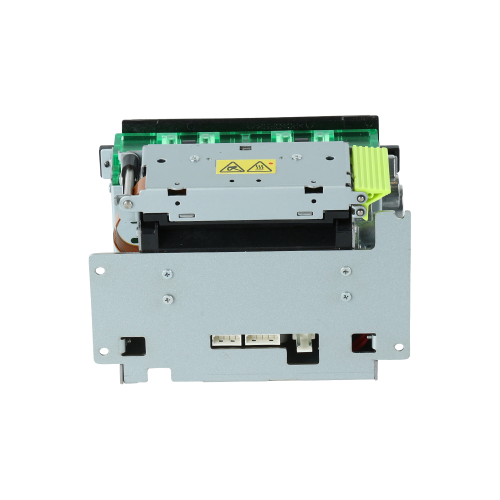

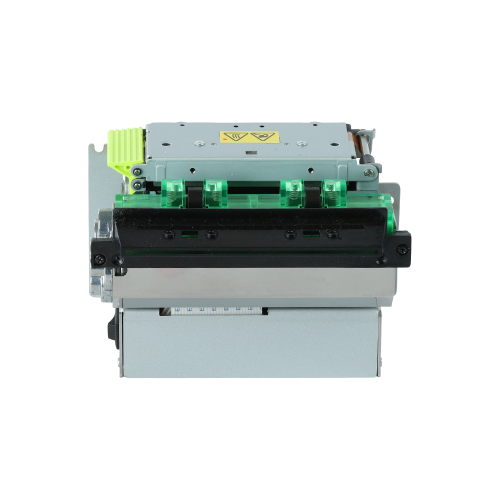

RX535-V00PRM2
2-inch printer mechanism for ticket and receipt printing
-
Technical Sheet
상품 정보 고시
구분 내용 Printing System Direct Thermal auto load Cutting System Auto cutter Presenter Available as an option Bezel Available as an option Media Thermal Rolls: Paper, Die cut continuous Label Paper width 59 ± 0.5 mm Printing width 54 mm Roll Diameter 120mm Roll Length 185 m Paper thickness 0.056~0.08mm [max 0.1] Dots/line 432 Characters/line 18, 36, 48 Resolution 203 dpi, 8 dots/mm Printing speed Up to 200 mm/sec Dimensions (W x L x H mm) NON-PR : 109.1 x 51 x 77.2 (W x L x H) PR : 109.1 x 77.4 x 77.2 (W x L x H) Weight (without paper) 430g / 500g Interfaces USB+Serial Sensors Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home Voltage 24VDC - 110/240VAC adapter available Current 1.7A (25% print ratio) ~ 8.5A (100% print ratio peak) Print head life 150km Cutter life 1 million cuts Operating temperature 0℃~50℃ -
Accssories
-
24V Power adaptor(with an AC power cord) -
9pin female to female serial cable -
USB A-B Cable
-
