Kiosk Printers
2inch

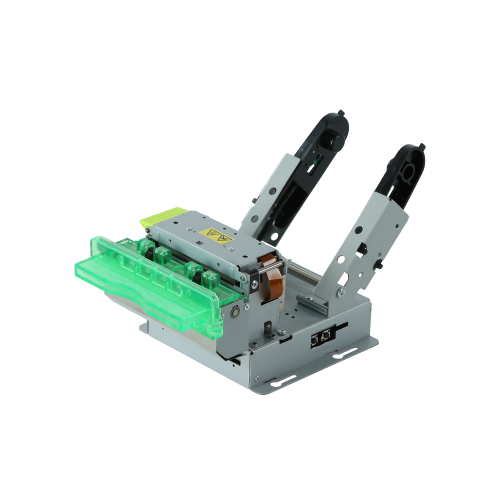

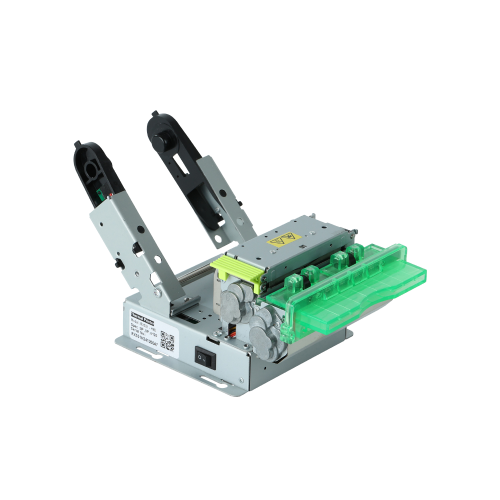

RX531-H120PRM2
60 mm ticket / receipt printer with presenter function
-
Technical Sheet
상품 정보 고시
구분 내용 Printing System Direct Thermal auto load Cutting System Auto cutter Presenter Available as an option Bezel Available as an option Media Thermal Rolls: Paper, Die cut continuous Label Paper width 59 ± 0.5 mm Printing width 54 mm Roll Diameter 120mm Max Roll Length 185 m Paper thickness 0.056~0.08mm [max 0.1] Dots/line 432 Characters/line 18, 36, 48 Resolution 203 dpi, 8 dots/mm Printing speed Up to 200 mm/sec Dimensions (W x L x H mm) 107.7 x 109.2 x 201.1 Weight (without paper) 715g Interfaces USB+Serial Sensors Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home Voltage 24VDC - 110/240VAC adapter available Current 1.7A (mean) ~ 8.5A (peak) Print head life 150km Cutter life 1 million cuts Operating temperature 0℃~50℃ -
Accssories
-
24V Power adaptor(with an AC power cord) -
9pin female to female serial cable -
USB A-B Cable
-
